Electro-Pneumatic Regulators

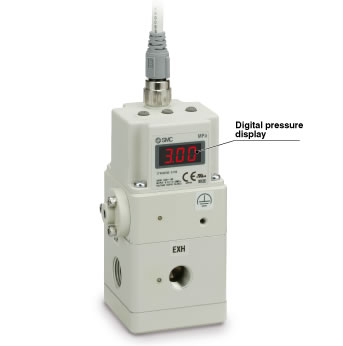

5.0 MPa Maximum Supply Pressure High Pressure Electro-Pneumatic Regulator ITVX
 | ・Stepless control of air pressure proportional to electrical signals ・Maximum supply pressure: 5.0 MPa ・Set pressure range: 0.01 to 3.0 MPa ・Maximum flow rate: 3000 L/min (ANR) ・Fluid: Air, N2, O2, Ar ・Wetted parts: Fluorine grease |
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| ITVX | 3/8 | 0.01 to 3.0 |
■Stepless control of air pressure proportional to an electrical signal
Maximum supply pressure ： 5.0 MPa
Set pressure range ： 0.01 to 3.0 MPa
Maximum flow rate ： 3000L/min（ANR）*
* Supply pressure: 5.0 MPa Set pressure: 3.0 MPa
Fluid ： Air, N2, O2*, Ar
* When using O2, refer to “Fluid Supply” on page 865.
Wetted parts : Fluorine grease
Power consumption ： 3 W or less
■Application example
5.0 MPa Maximum Supply Pressure High Pressure Electro-Pneumatic Regulator ITVX
